APIs

Dr. Alexander Fisher

Duke University

Announcements

Reminder:

  • Lab 7 due today at 5:00pm.
  • Final project presentations during lab Tuesday, April 25.

Application Programming Interfaces (APIs)

What is an API?

An API is a messenger that takes requests and returns responses. It allows for interaction between applications, databases, and devices.

If you want to

  • embed a map on your website, you’ll probably use Google’s API

  • embed a tweet on your website, you’ll use Twitter’s API

  • trade stocks in Python or R, you’ll probably use your broker’s API

  • pull genetic sequence data from GenBank, you’ll use GenBank’s API

  • create 54 repositories named lab07-[github_team_name], you’ll probably use GitHub’s API

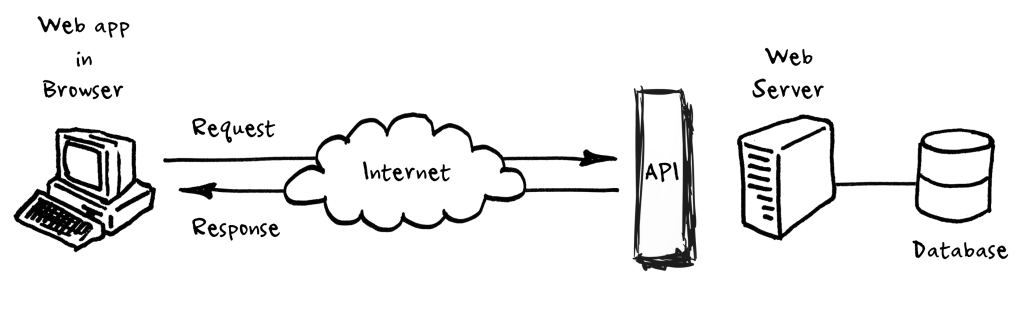

Client-server framework with an API

Protocols

A computer protocol is a set of rules that govern how multiple computers communicate.

  • IP: Internet Protocol

  • FTP: File Transfer Protocol

  • HTTP: Hyper Text Transfer Protocol The key protocol that governs data transfer over the internet Allows HTML, CSS, JS to be transferred from a server to your browser

  • HTTPS: Hyper Text Transfer Protocol Secure

Why do we care?

Web APIs are built on HTTP. Since so much of what we do is built over the web it is natural for web APIs to follow this protocol.

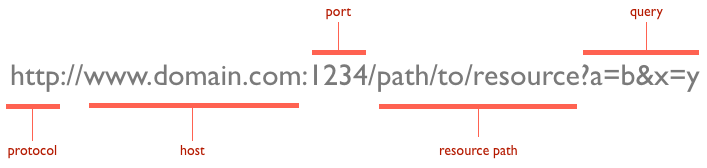

URLs

Query strings

Provides named parameter(s) and value(s) that modify the behavior of the resulting page.

Format generally follows:

field1=value1&field2=value2&field3=value3
  • note the = and &

Some quick examples,

  • http://lmgtfy.com/?q=hello%20world

  • http://maps.googleapis.com/maps/api/geocode/json?sensor=false&address=1600+Amphitheatre+Parkway

  • https://nomnom-prod-api.dennys.com/mapbox/geocoding/v5/mapbox.places/raleigh,%20nc.json?types=country,region,postcode,place&country=us,pr,vi,gu,mp,ca

URL encoding

This is will often be handled automatically by your web browser or other tool, but it is useful to know a bit about what is happening

  • Spaces will encoded as ‘+’ or ‘%20’

  • Certain characters are reserved and will be replaced with the percent-encoded version within a URL

! # $ & ’ ( )
%21 %23 %24 %26 %27 %28 %29
* + , / : ; =
%2A %2B %2C %2F %3A %3B %3D
? @ [ ]
%3F %40 %5B %5D
  • Characters that cannot be converted to the correct charset are replaced with HTML numeric character references (e.g. a \(\Sigma\) would be encoded as Σ )

REST APIs

Representational State Transfer

  • describes an architectural style for web services (not a standard)

  • all communication via http requests

  • a REST API should specify what it can provide and how to use it, details such as query parameters, response format, request limitations, public use/API keys, method (GET/POST/PUT/DELETE), language support, etc.

HTTP methods / verbs

  • GET: fetch a resource
    • most common, literally request info.
  • POST: create a new resource
    • example: create new GitHub repositories. In general, any data you send to the website.
  • PUT: update a resource
  • DELETE: delete a resource

Less common verbs: HEAD, TRACE, OPTIONS

Status codes

  • 1xx: informational messages

  • 2xx: successful

  • 3xx: redirection

  • 4xx: client error

  • 5xx: server error

Example

https://anapioficeandfire.com/

Documentation

While there is a lot of standardization, every API is different and you will need to review the documentation of each.

See documentation here for AAOIF.

Resources/endpoints

  • Root - https://www.anapioficeandfire.com/api
  • List books - https://www.anapioficeandfire.com/api/books
  • Specific book - https://www.anapioficeandfire.com/api/books/1

Pagination

An API of Ice And Fire provides a lot of data about the world of Westeros. To prevent our servers from getting cranky, the API will automatically paginate the responses. You will learn how to create requests with pagination parameters and consume the response.

Things worth noting:

Information about the pagination is included in the Link header Page numbering is 1-based You can specify how many items you want to receive per page, the maximum is 50

Constructing a request with pagination

You specify which page you want to access with the ?page parameter, if you don’t provide the ?page parameter the first page will be returned. You can also specify the size of the page with the ?pageSize parameter, if you don’t provide the ?pageSize parameter the default size of 10 will be used.

Exercise

  • How many characters are included in this API?

  • What percentage of the characters are alive?

Download the in-class solution and example API code from 04/19 here:

download.file(url = "https://sta323-sp23.github.io/scripts/apiDemo.R",
              destfile = "apiDemo.R")

Another example

pokeapi: https://pokeapi.co/docs/v2

Further reading
